Assets & commands

An asset advertises what it can be told. The client reads that list and never guesses, so the same command call works for a quadcopter, a turret and a simulated twin.

Read the assets

GET /api/assets is every asset in the workspace's current environment, live: identity, domain, link state, kinematics, health, mission progress, and the capability list that drives commanding. Vehicles and sensors are in the same list.

Filters narrow it:

curl "https://<your-backend-host>/api/assets?kind=sensor"
curl "https://<your-backend-host>/api/assets?free=true&nearest=1.3521,103.8198"

kind is vehicle or sensor. nearest takes lat,lon and sorts by distance on the fused picture, nearest first; a pair outside the range of a latitude and a longitude is refused with 400. free=true drops anything a plan has already committed to a threat.

GET /api/assets/{id} reads one asset.

Register an asset

One call, POST /api/assets, registers a vehicle, places a sensor, or adopts something a link has heard. A registered vehicle is on the friendly list from the next fusion cycle, so its own track stops scoring as an unknown contact.

1. Look up the catalogue value

Take catalog from the catalogue rather than typing it:

Registering	Ask	Use
A vehicle	GET /api/catalogue/types	the type's id, for example dji/mavic-3-pro
A vehicle, by name	GET /api/catalog/builtins	the entry's name, for example DJI Mavic 3 Pro
A fixed sensor	GET /api/catalog/sensor-profiles	the profile's id, for example ground-radar-360

A value the catalogue does not hold is refused with 404, and the error names it.

2. Send it

curl -X POST https://<your-backend-host>/api/assets \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $TOKEN" -H "X-Workspace-Id: $WORKSPACE" \
  -d '{
    "name": "BLUE-04",
    "catalog": "dji/mavic-3-pro",
    "spec": { "remote_id_serial": "1581F5FHD228Q00A1234" }
  }'

201 Created
Location: /api/assets/ast_…

{ "ok": true, "data": {
  "id": "ast_339a78dc2b9146aa8736bf2c05a4ccbb",
  "name": "BLUE-04",
  "domain": "aerial",
  "kind": "vehicle",
  "performance": { "cruise_mps": 12.0, "max_mps": 21.0,
                   "endurance_min": 43.0, "ceiling_m": 6000.0 },
  "payloads": [
    { "profile": "eo-turret", "label": "Hasselblad 4/3 main", "source": "catalog", "…": "…" },
    { "profile": "eo-turret", "label": "166mm tele", "source": "catalog", "…": "…" }
  ],
  "link": { "state": "unlinked" },
  "switches": { "receiving": true, "commanding": false, "video": false, "automation": "site" },
  "saved": true,
  "…": "…" } }

Every field of the body and of the answer: Asset model.

3. Check what came back

• id starts with ast_. Every later call names the asset by it.
• kind is the one you meant.
• capabilities lists the verbs the asset accepts. When it accepts none, as with a vehicle no link is carrying yet, the key is absent.
• For a sensor, placement is the point you sent.

The console open on the same workspace shows the asset within seconds, without a reload:

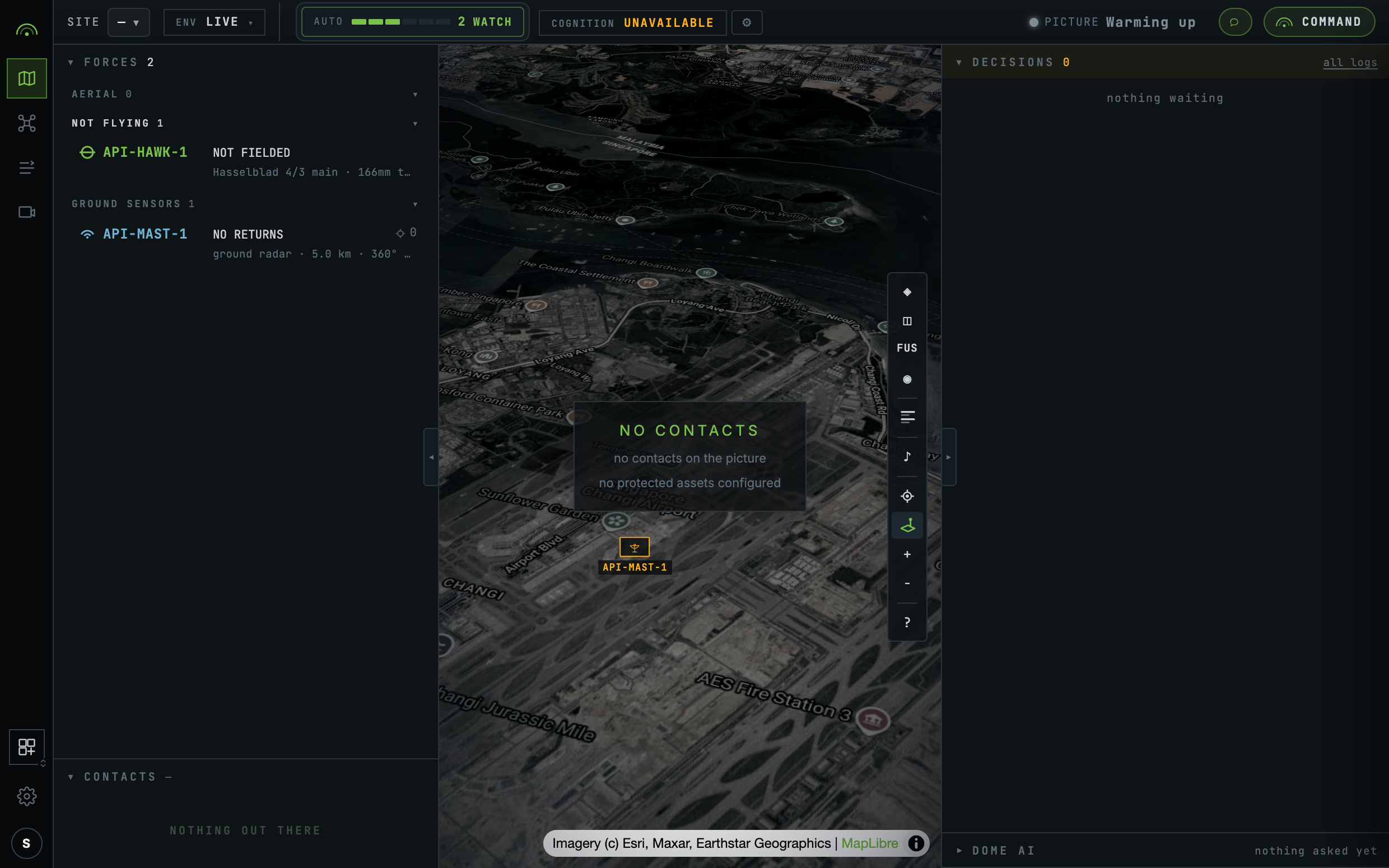

The DomeCommand console after two registrations through the API

The console a few seconds after two POST /api/assets calls, with no reload: API-HAWK-1 under NOT FLYING, API-MAST-1 under GROUND SENSORS and on the map

Place a sensor

A fixed sensor is registered with kind: "sensor", a profile, and a placement:

curl -X POST https://<your-backend-host>/api/assets \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $TOKEN" -H "X-Workspace-Id: $WORKSPACE" \
  -d '{
    "name": "MAST-1",
    "kind": "sensor",
    "catalog": "ground-radar-360",
    "placement": { "lat": 1.352, "lon": 103.992, "height_m": 12, "boresight_deg": 90 }
  }'

{ "ok": true, "data": {
  "id": "ast_f851466a16d14fe6b197c6ba09e47b8f",
  "name": "MAST-1",
  "domain": "ground",
  "kind": "sensor",
  "capabilities": [
    { "verb": "cue_sensor", "params": "target", "class": "effect", "available": true },
    { "verb": "cue_release", "params": "none", "class": "effect", "available": true }
  ],
  "placement": { "lat": 1.352, "lon": 103.992, "height_m": 12.0, "boresight_deg": 90.0 },
  "profile": "ground-radar-360",
  "sensor_id": "MAST-1",
  "…": "…" } }

Latitude comes first. Detection range, field of view and measurement accuracy come from the profile, because they are facts about the sensor model rather than numbers to type in. A placed sensor advertises cue_sensor and cue_release, and nothing else.

Settings, Assets lists what the API registered, in the same registry an operator adds to by hand:

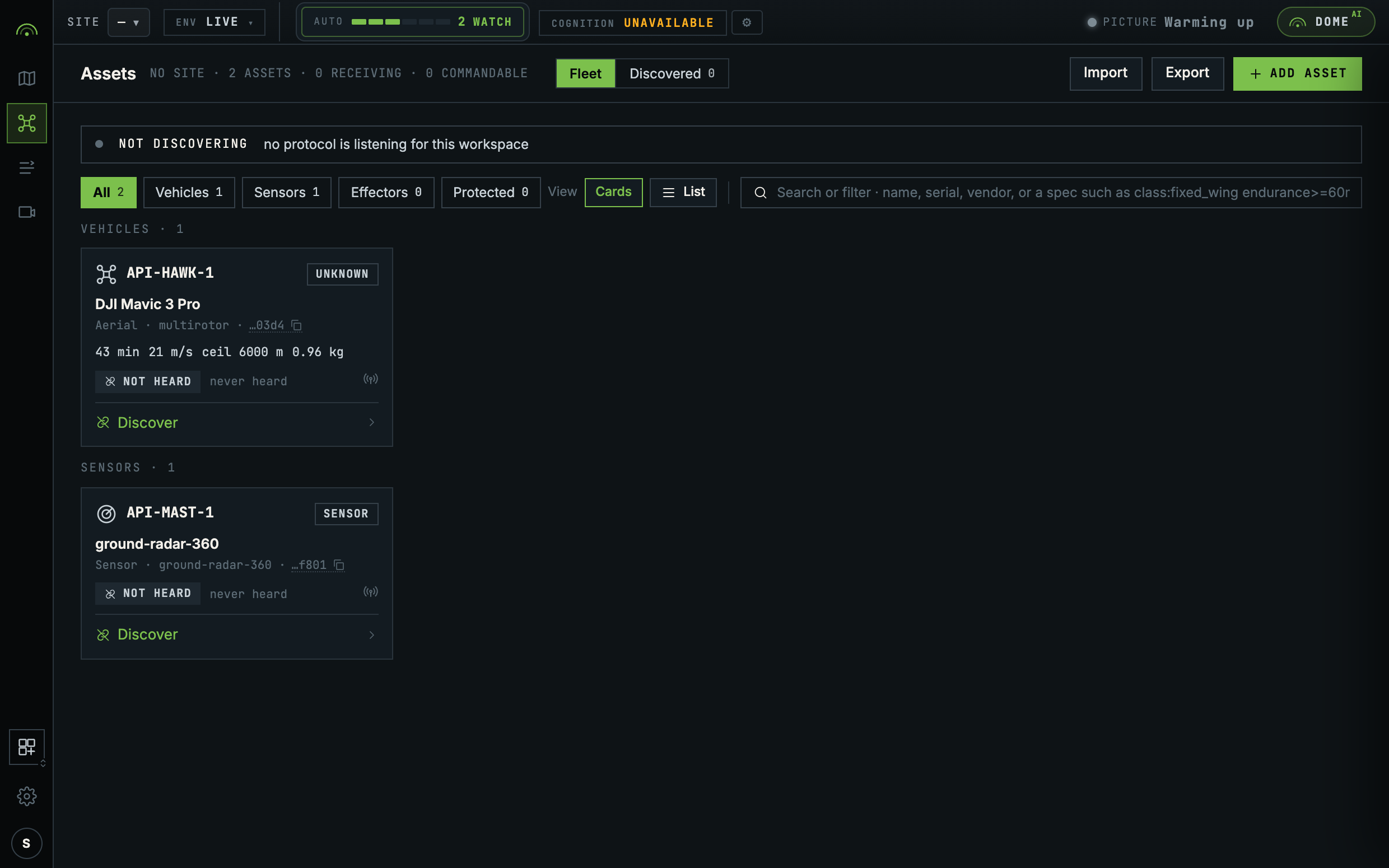

Settings, Assets listing a vehicle and a sensor registered through the API

The Assets page after the same two calls: API-HAWK-1 as a DJI Mavic 3 Pro with its catalogue figures, API-MAST-1 as a ground-radar-360, both NOT HEARD until a link carries them

When registration is refused

A refusal writes nothing. Correct the body and send it again.

Sent	Status	code	error
A name already used in the workspace	409	conflict	something with that name already exists in this workspace
A blank name	400	invalid_input	an asset needs a name, so an operator can call it something
A catalog the catalogue does not hold	404	unknown_resource	no catalogue platform named dji-mavic-3
A sensor with no catalog	400	invalid_input	names the profiles to choose from
A sensor profile that does not exist	404	unknown_resource	no sensor profile named laser-eye
A sensor with no placement	400	invalid_input	says a fixed sensor needs a placement
lat and lon swapped	400	invalid_input	that placement is not a point on the earth. Check the order of the pair
A connection.address nobody has heard	404	unknown_resource	nothing discovered with key mav-udp-14550-42
No credential	401	unauthenticated	names the two headers that authenticate
No X-Workspace-Id	400	invalid_input	name a workspace with the X-Workspace-Id header
A workspace you are not a member of	403	not_a_member	you are not a member of that workspace

A body that is not valid JSON is refused with 400 and a plain-text sentence from the JSON parser, without the envelope. Check the status before reading code.

Edit and remove

POST /api/assets/{id} changes an asset. Send only the fields that change: name, model, performance, placement or switches. Sending the whole spec back from a form replaces every key in it, serial included.

curl -X POST https://<your-backend-host>/api/assets/$ID \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $TOKEN" -H "X-Workspace-Id: $WORKSPACE" \
  -d '{ "placement": { "lat": 1.352, "lon": 103.992, "boresight_deg": 200 } }'

The answer is the stored record rather than the asset view. Its id is the UUID form, f851466a-16d1-4fe6-b197-c6ba09e47b8f for ast_f851466a16d14fe6b197c6ba09e47b8f, and every route accepts either form. The change is in spec:

{ "ok": true, "data": {
  "id": "f851466a-16d1-4fe6-b197-c6ba09e47b8f",
  "kind": "sensor",
  "name": "MAST-1",
  "spec": {
    "model": "ground-radar-360",
    "sensors": [ { "id": "MAST-1", "profile": "ground-radar-360",
                   "boresight_deg": 200.0, "…": "…" } ],
    "…": "…" },
  "updated_at": "2026-09-17T05:45:18.347849+00:00",
  "…": "…" } }

POST /api/assets/{id}/payloads replaces what a vehicle carries, for that airframe only.

DELETE /api/assets/{id} answers 204, and 404 if the asset is already gone. Removing a vehicle takes it off the friendly list, so if it is still in the air its track is scored as an unknown contact from the next cycle. Land it first.

Adopt what a link hears

A vehicle announcing itself on a link this workspace is attached to appears under GET /api/discoveries, each with the address it was heard on. Adopting one is the same registration call, naming the integration and that address:

curl https://<your-backend-host>/api/discoveries \
  -H "Authorization: Bearer $TOKEN" -H "X-Workspace-Id: $WORKSPACE"

curl -X POST https://<your-backend-host>/api/assets \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $TOKEN" -H "X-Workspace-Id: $WORKSPACE" \
  -d '{ "name": "BLUE-05",
        "connection": { "integration": "mavlink", "address": "mav-udp-14550-42" } }'

The address is built from the link and the vehicle's own system id, so the same aircraft is heard under the same address after a restart. An address nobody has heard is refused with 404. An address this workspace already holds is refused with 409, and the error names the asset that holds it.

Which ports and links are open is the deployment's dome.yaml, not an API call. GET /api/links reads them.

Command an asset

Every command is the same call, a verb and its parameters, and it answers with the task it wrote.

curl -X POST https://<your-backend-host>/api/assets/$ID/command \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $TOKEN" -H "X-Workspace-Id: $WORKSPACE" \
  -d '{
    "verb": "move_to",
    "params": { "kind": "point", "lat": 1.3521, "lon": 103.8198, "alt_m": 60 }
  }'

An accepted command answers 201, with Location: /api/tasks/tsk_…. The move_to above needs a vehicle whose link advertises it. This answer is from cue_release on the sensor placed earlier:

{ "ok": true, "data": {
  "id": "tsk_9358bfc5cd2d403693554d8a4c60fe65",
  "actor": "ast_f851466a16d14fe6b197c6ba09e47b8f",
  "verb": "cue_release",
  "params": { "kind": "none" },
  "origin": { "source": "operator" },
  "level": "observe",
  "gate": { "gate": "runs", "stop_within": 0 },
  "status": "issued",
  "issued_at": "2026-09-17T05:45:18.370967Z",
  "…": "…" } }

level is the rung the verb sits on (observe, manoeuvre, watch, shadow, deny, destroy). gate is what the autonomy line answered: runs (with stop_within, the seconds left to stop it), asks (it waits for an operator), or not_permitted.

await fetch(`https://<your-backend-host>/api/assets/${assetId}/command`, {
  method: "POST",
  headers: {
    "Content-Type": "application/json",
    Authorization: `Bearer ${token}`,
    "X-Workspace-Id": workspace,
  },
  body: JSON.stringify({
    verb: "follow_route",
    params: {
      kind: "route",
      points: [
        { lat: 1.3521, lon: 103.8198, alt_m: 60 },
        { lat: 1.3540, lon: 103.8210, alt_m: 60, hold_s: 30 },
      ],
      on_complete: "hold",
    },
  }),
});

Flying a named route, pointing a mast and sending the nearest free drone to a map click are all this call with a different verb. Read the record back at GET /api/tasks.

The verbs

Lifecycle and navigation act on the asset itself. An effect acts on a track or a place, and also passes rules-of-engagement gating. Every verb, its class and its params kind, route points included: Command model.

The capability contract

An asset's capabilities list names each verb it accepts, its parameter kind, its class, whether it is available right now, and a reason when it is not. A client renders and sends only what is advertised. A verb outside the list, or advertised but unavailable right now, is refused with 409 and an error naming the asset and the verb:

{ "ok": false, "error": "BLUE-04 cannot be commanded to Move to", "code": "conflict" }

A refusal is written down too. GET /api/tasks carries it with status: "refused" and the refusing rule's own sentence on reason, so it can still be read a minute later:

{ "id": "tsk_9eb4c6aff1f148c0a962bbdb23d90e52",
  "actor": "ast_339a78dc2b9146aa8736bf2c05a4ccbb",
  "verb": "move_to",
  "params": { "kind": "point", "lat": 1.3521, "lon": 103.8198, "alt_m": 60.0 },
  "object": { "kind": "place", "lat": 1.3521, "lon": 103.8198 },
  "level": "manoeuvre",
  "status": "refused",
  "reason": "BLUE-04 cannot be commanded to Move to",
  "…": "…" }

An asset with no capabilities is monitor-only. That is a state, not an error.

Addressing is always by asset id, the ast_… the registry returned. No protocol identifier appears in any path; which adapter carries the command is the server's business.
